Bearing structure

Angular Contact Bearing Cages

Plastic cages that guide rolling elements according to the bearing’s designed contact angle.

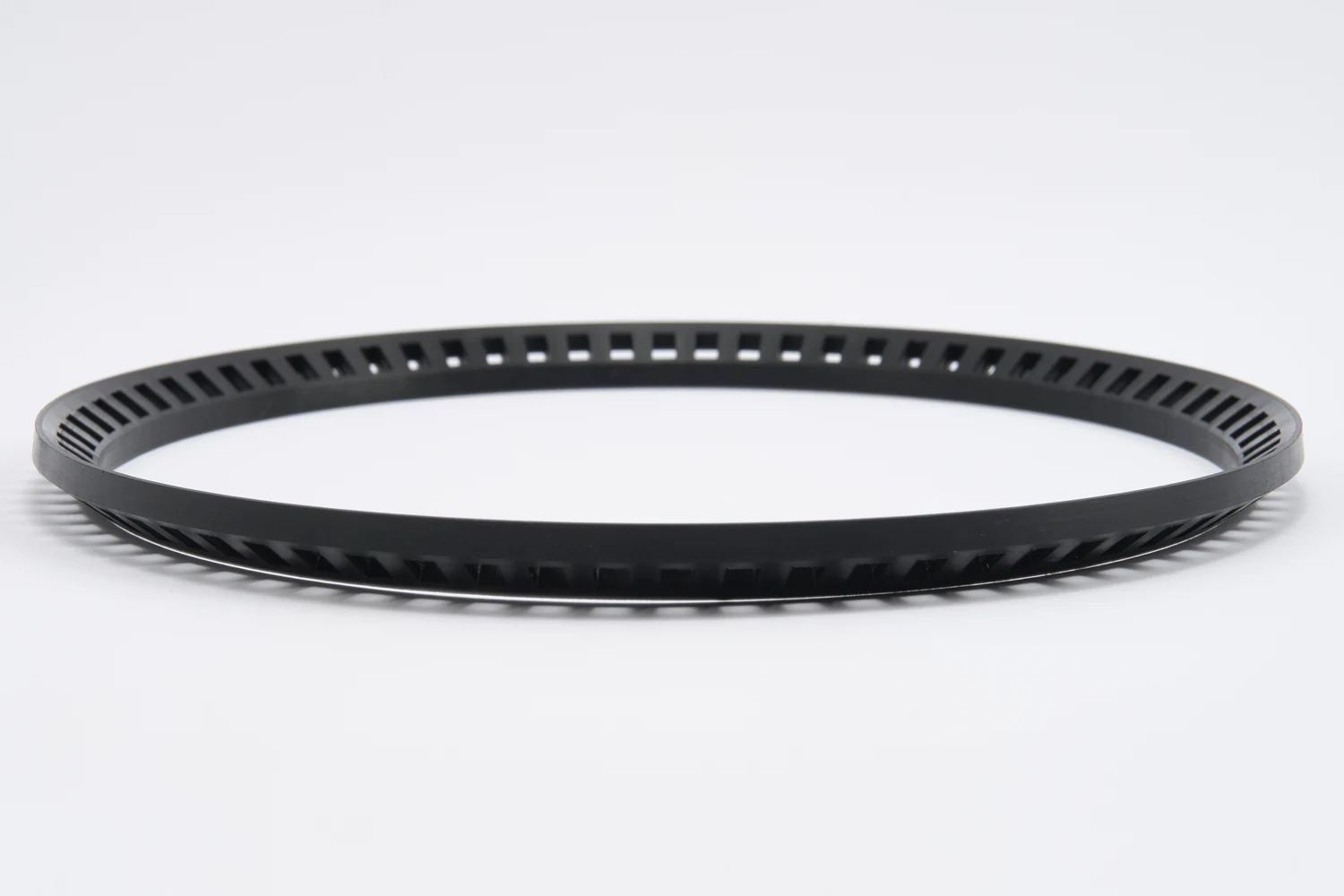

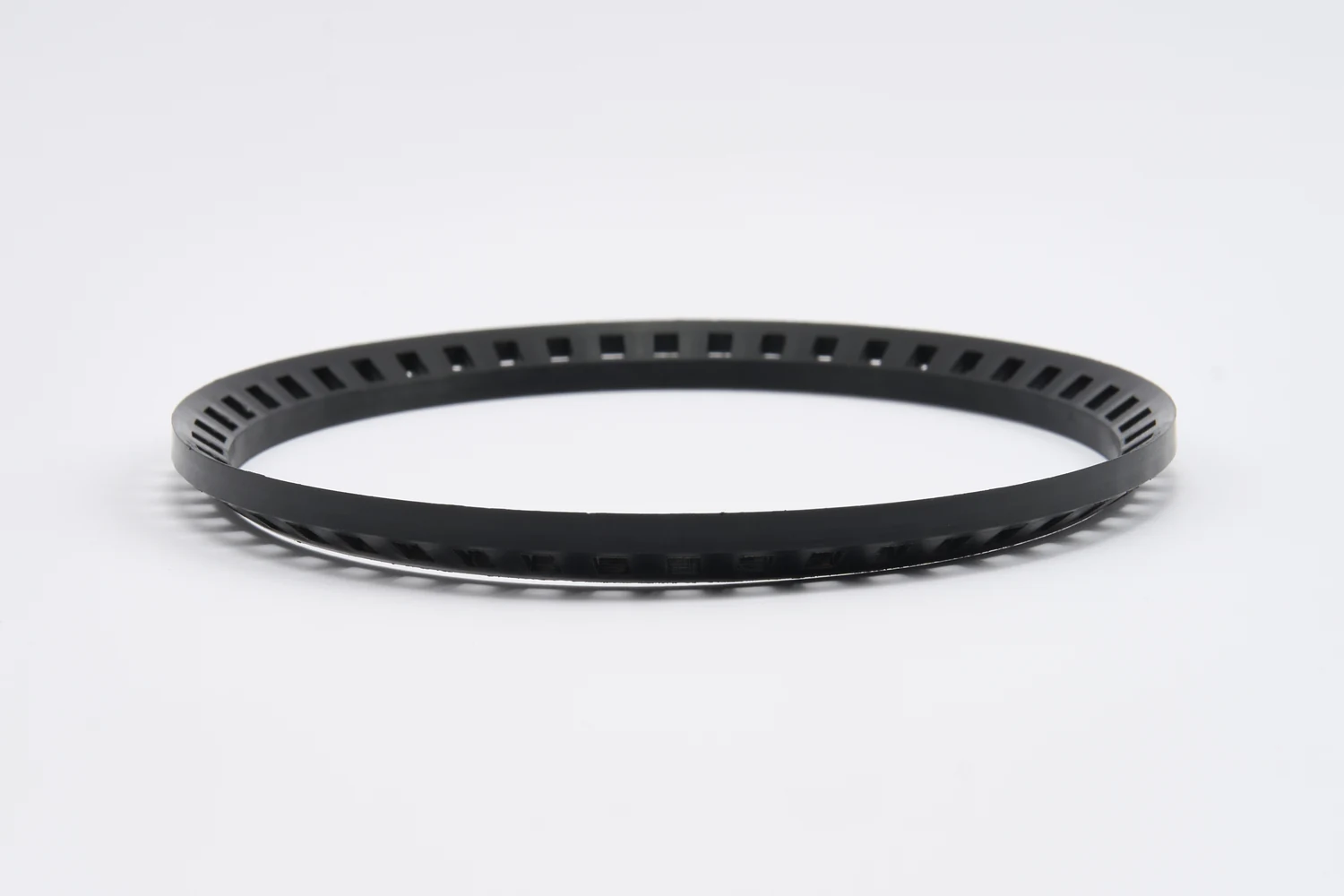

Boerjing product photograph: Angular Contact Bearing Cages (1)
Product example. Geometry and supply are agreed for each project.

Application and design

The rolling-element type, contact angle and mounting arrangement define the cage geometry. The AXS series shown here is for axial angular contact roller bearings with cylindrical rollers.

Supply scope: Plastic cages only. Rollers, balls, bearing rings and complete bearings are not included.

Discuss this component

Series design

AXS Series Plastic Cages for Axial Angular Contact Roller Bearings

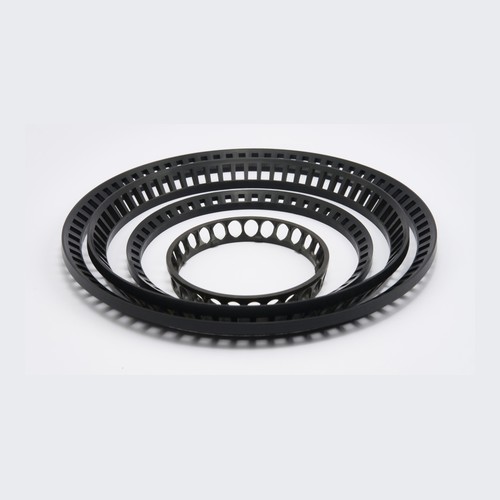

Series reference photograph

AXS Series

Axial angular contact roller design

The cage pockets follow the designed contact angle in a thin-section axial angular contact cylindrical roller bearing. Contact angle and roller arrangement are confirmed from the drawing or approved sample.

Discuss your AXS project

Materials & customisation

Material selection considers pocket stability, molding of the angled geometry and the operating environment. A material grade is confirmed against the project requirements.

Choose from the nylon materials below for your cage design and operating conditions. The specific resin grade is agreed for the project.

Nylon options for custom cages
Material code Material description
PA66 Unreinforced polyamide 66
PA66-GF10 10% glass-fibre-reinforced polyamide 66
PA66-GF15 15% glass-fibre-reinforced polyamide 66
PA66-GF25 25% glass-fibre-reinforced polyamide 66
PA66-GF30 30% glass-fibre-reinforced polyamide 66
PA46 Unreinforced polyamide 46
PA46-GF15 15% glass-fibre-reinforced polyamide 46
PA46-GF25 25% glass-fibre-reinforced polyamide 46
PA46-GF30 30% glass-fibre-reinforced polyamide 46

Typical raw-material property ranges

Published example grades: unreinforced to 30% glass fibre
PropertyPA66PA46
Densityg/cm³ 1.13–1.361.18–1.41
Tensile stress, dryMPa 85–190100–210
Tensile modulus, dryGPa 3.0–10.03.3–10.0
Melting point, DSC°C ≈260≈295
Heat deflection temperature°C · 1.8 MPa 75–250190–290

Ranges summarise the example resin grades below for initial material selection. Finished-part performance is reviewed for the selected grade and application. Tensile stress uses dry yield or break values. Continuous operating temperature is assessed separately for the grade and conditions.

Reference grades and manufacturer data

Material guide

Design requirements

Rolling-element geometry
Specify the rolling-element type and dimensions before discussing the cage structure.
Contact and mounting
Provide the contact angle, pocket orientation, cage envelope and mounting direction.
Working conditions
Describe loading, speed, temperature, lubrication and assembly clearances.

Custom development and project enquiries

Boerjing develops molds and manufactures precision injection-molded plastic parts from customer drawings or approved samples. We support mold trials, sample approval, small-batch validation and repeat production.

Start with the component and intended use. Share available drawings or samples, material requirements and expected quantities.

Send drawings and other attachments separately by email. Custom manufacturing FAQ
